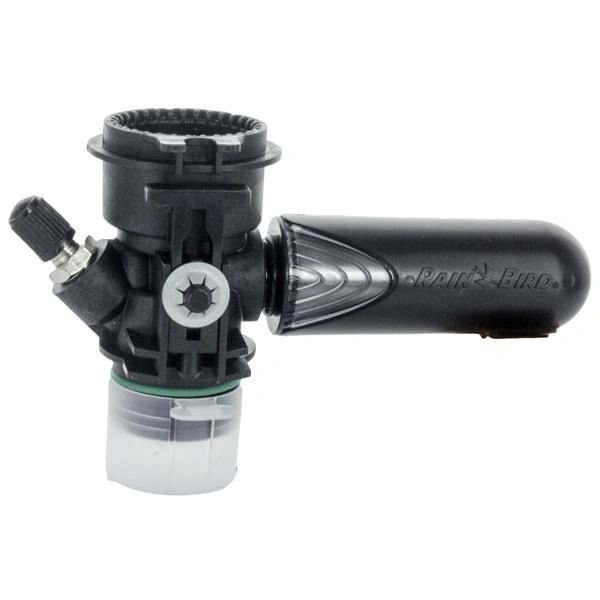

Rain Bird PRS-DIAL - Pressure Regulator Attachment for Valves

Features

• Regulates and maintains constant outlet pressure between 15 and 100 psi (1,04 to 6,90 bar) within ±3 psi (±0,21 bar)

• Adjustment knob with detents permits finetune setting in 1⁄3 psi (0,02 bar) increments

• Improved spike reduction capabilities reduce water hammer

• Ergonomic design with snap-tight cover to prevent vandalism

• Waterproof dial cartridge eliminates fogging and binding

• Dial cartridge retrofits into all existing PRS-B units

• Schrader valve connects pressure hose gauge

• Easy field installation. PRS-Dial threads underneath the solenoid and adapter

• Corrosion-resistant glass-filled nylon for rugged performance Operating Range Pressure: up to 100 psi (6,90 bar)* Regulation: 15 to 100 psi (1,04 to 6,90 bar) Accuracy: ±3 psi (±0,21 bar) Flow: refer to chart Temperature: up to 150°F (66°C)
